Specifications

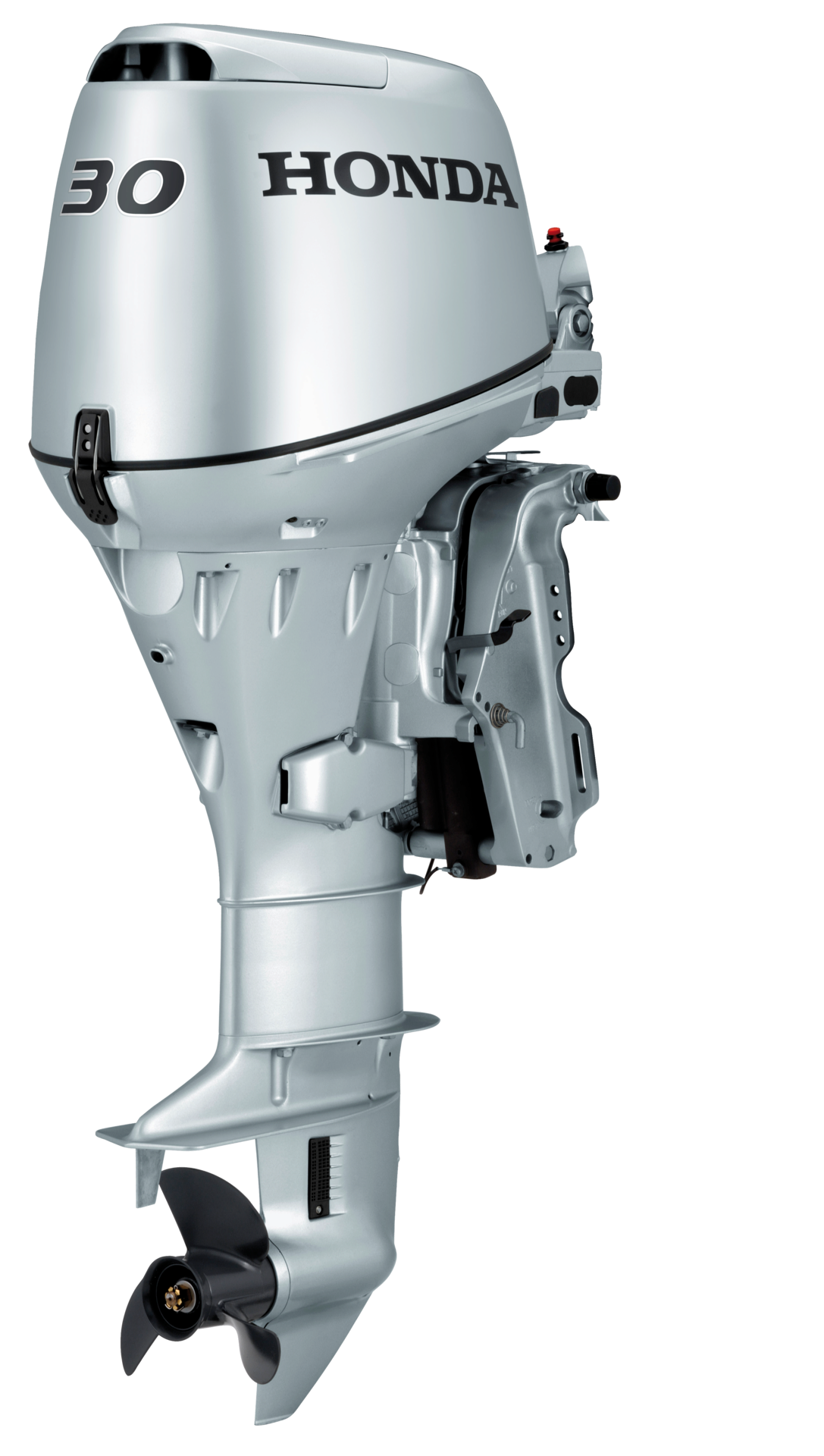

Honda BF30 LRTU Specifications
Engine
| Specification | Honda BF30 LRTU |
|---|---|
| Type | 4-Stroke SOHC, 3-Cylinder, 6-Valve |
| Displacement | 552 cc |
| Bore × Stroke | 61 × 63 mm |
| Full Throttle RPM Range | 5,000–6,000 RPM |
| Rated Power | 30 HP (22.1 kW) @ 6,000 RPM |
| Cooling System | Water Cooled |
| Fuel Delivery | 3 Carburetors |
| Ignition System | Programmed Ignition (PGM-IG) |
| Starting System | Electric |
| Exhaust | Through Hub |
| Lubrication | Wet Sump |
| Trim Range | -4° to +12° |
| Tilt Range | 64° |
Drive
| Specification | Honda BF30 LRTU |
|---|---|
| Gear Ratio | 2.08:1 |
| Gear Shift | F-N-R |
Equipment
| Specification | Honda BF30 LRTU |
|---|---|
| Alternator | 10-Amp (126 W) |
| Battery Charging Output | 10 A |
| Propeller | 3-Blade Aluminium |
| Power Trim & Tilt | Standard |
| Oil Pressure Alert | Standard |
| Temperature Alert | Standard |
| Rev-Limiter | Standard |
| Emergency Stop Switch | Standard |
| Remote Control | Standard |
Dimensions
| Specification | Honda BF30 LRTU |
|---|---|
| Overall Length | 640 mm |
| Overall Width | 375 mm |
| Overall Height | 1,320 mm |
| Transom Height | 508 mm / 20 inches (Long Shaft) |
Dry Weight
| Specification | Honda BF30 LRTU |
|---|---|
| Dry Weight | Approximately 79 kg |
