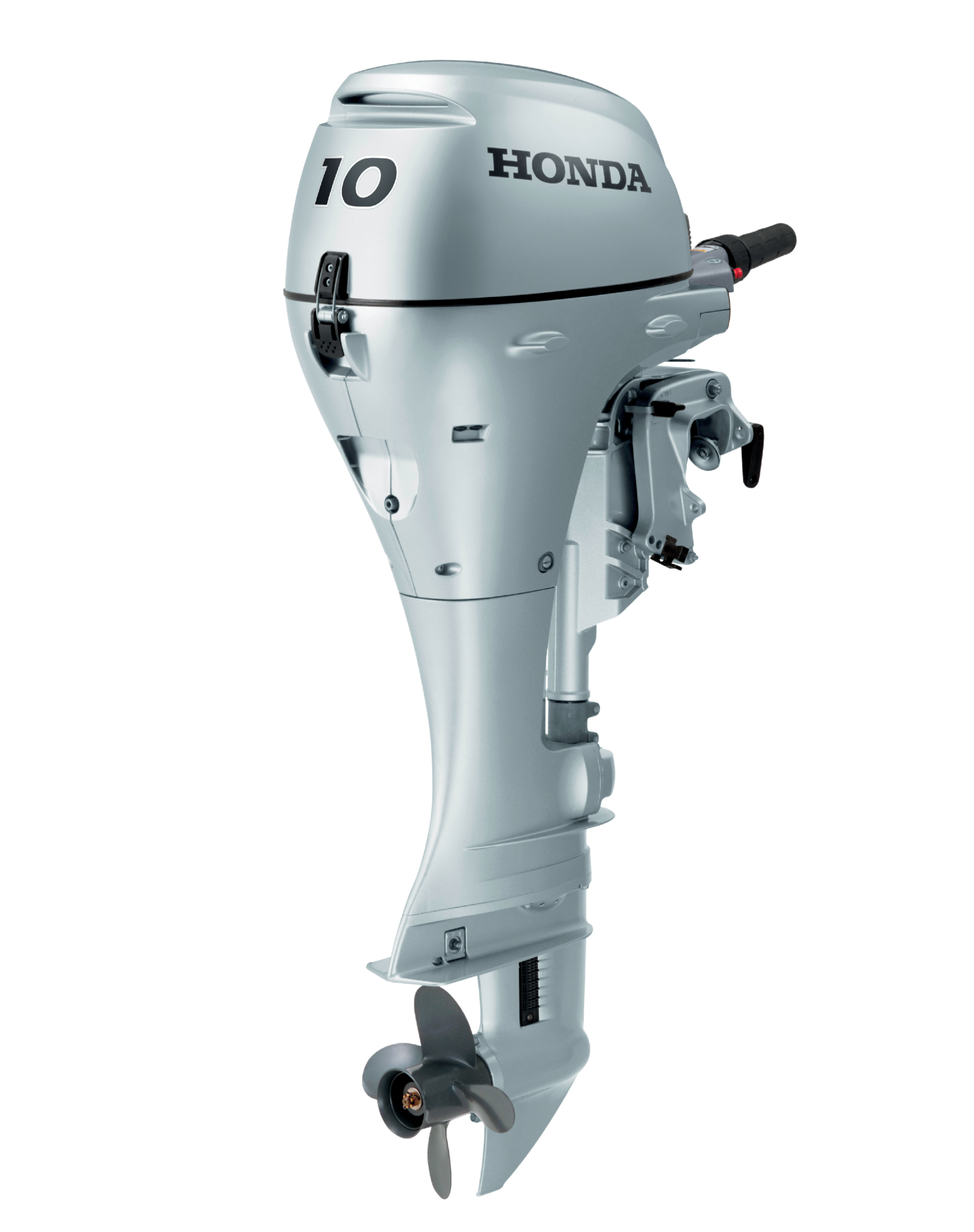

HONDA BF8 – BF10

€2,900.00 – €3,300.00

Remote steering option available. Please contact us if interested.

Clear
SKU: N/A Category:


Additional information

Models

BF8, BF10
Shaft length

Short Shaft (17-inch / 433-mm), Long Shaft (22-inch / 563-mm), Extra-Long Shaft (27.6-inch / 703-mm)
Steering

Tiller
Starting

Electric, Recoil

Specifications

Engine

Specification BF8 BF10
Type 4-Stroke OHV, 2 Cylinder 4-Stroke OHV, 2 Cylinder
Displacement 222 cc 222 cc
Bore & Stroke 58 mm × 42 mm 58 mm × 42 mm
Full Throttle RPM Range 4,500–5,500 RPM 5,000–6,000 RPM
Rated Power 8 HP @ 5,500 RPM 10 HP @ 6,000 RPM
Cooling System Water Cooled Water Cooled
Fuel Delivery 1 Carburetor 1 Carburetor
Ignition System Digital CDI Digital CDI
Starting System Manual / Electric Manual / Electric
Exhaust Through Hub Exhaust Through Hub Exhaust
Lubrication Trochoid Pump Pressure Lubrication Trochoid Pump Pressure Lubrication
Trim Range 5-Stage Manual Tilt 5-Stage Manual Tilt
Tilt Range 75° 75°

Drive

Specification BF8 BF10
Gear Ratio 2.33:1 2.33:1
Gear Shift F-N-R F-N-R

Equipment

Specification BF8 BF10
Alternator with Voltage Regulator 6-Amp Optional 12-Amp Optional
Battery Charging Power 5 Amps 10 Amps
Propeller Standard Standard
Power Tilt NA NA
Power Trim & Tilt NA NA
Gas Assisted Tilt Standard Standard
Oil Pressure Alert Standard Standard
Temperature Alert Standard Standard
Rev-Limiter Standard Standard
Speedometer Pickup Optional Optional

Dimensions

Specification BF8 BF10
Overall Length 610 mm / 24 inches 610 mm / 24 inches
Overall Width 345 mm / 13.6 inches 345 mm / 13.6 inches
Overall Height (S) 1,105 mm / 43.5 inches 1,105 mm / 43.5 inches
Overall Height (L) 1,232 mm / 48.5 inches 1,232 mm / 48.5 inches
Overall Height (X) NA 1,359 mm / 53.5 inches

Transom Height

Specification BF8 BF10
S Type 433 mm / 17 inches 433 mm / 17 inches
L Type 563 mm / 22 inches 563 mm / 22 inches
X Type NA 703 mm / 26.7 inches

Dry Weight

Specification BF8 BF10
S-Type 42 kg / 93 lbs. 42 kg / 93 lbs.
L-Type 46 kg / 101 lbs. 46 kg / 101 lbs.
X-Type NA 48 kg / 106 lbs.
