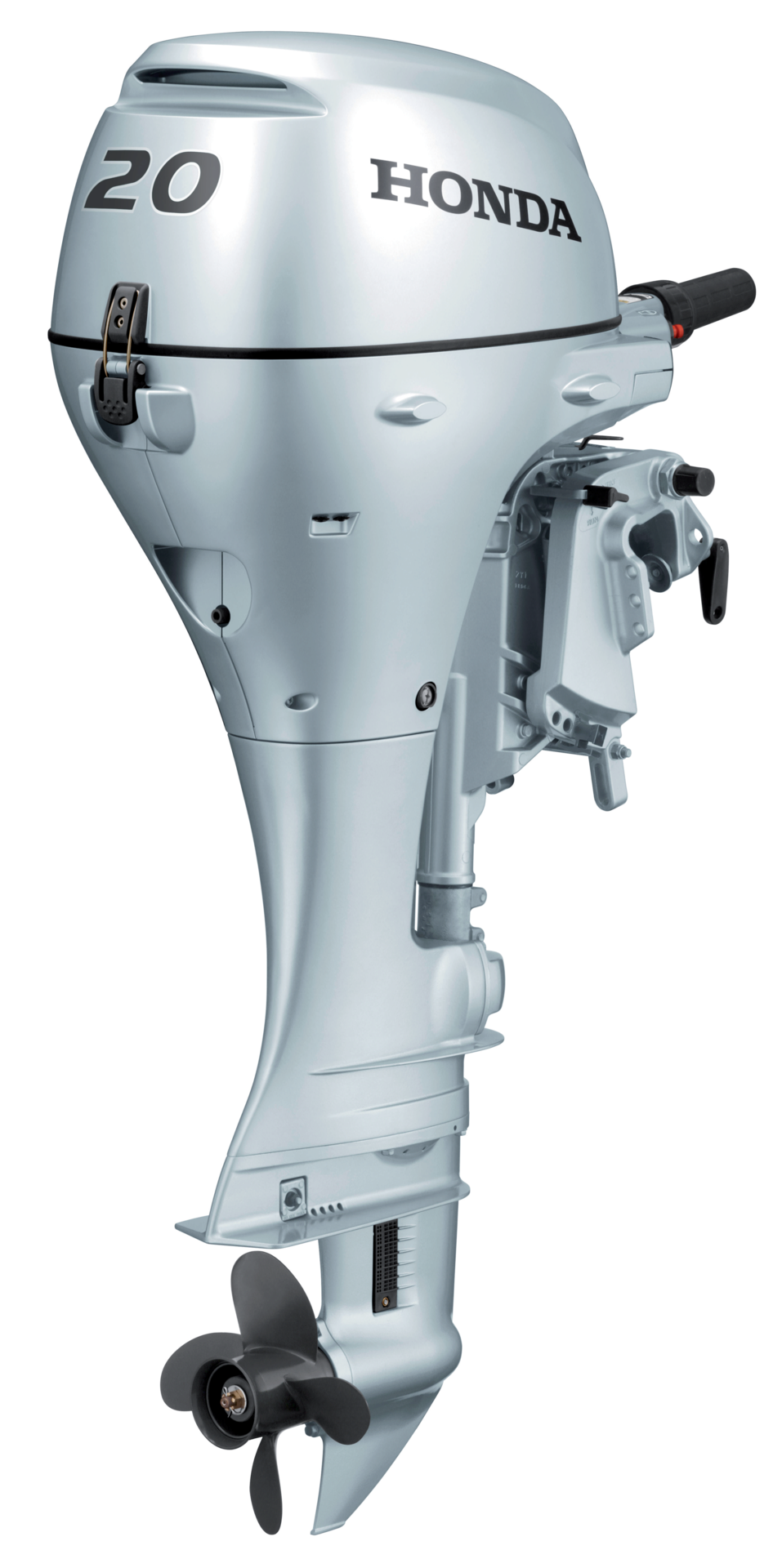

HONDA BF15 – BF20

€3,400.00 – €4,800.00

Clear
SKU: N/A Category:


Additional information

Models

BF15, BF20
Shaft length

Short (433mm, 17''), Long (563mm, 22'')
Steering

Tiller, Remote
Starting

Electric, Recoil
Power trim & Tilt

Yes, No

Specifications

Engine

Specification BF15 BF20
Type 4-Stroke OHV, 2 Cylinder 4-Stroke OHV, 2 Cylinder
Displacement 350 cc 350 cc
Bore & Stroke 59 mm × 64 mm 59 mm × 64 mm
Full Throttle RPM Range 4,500–5,500 RPM 5,000–6,000 RPM
Rated Power 15 HP @ 5,000 RPM 20 HP @ 5,500 RPM
Cooling System Water Cooled Water Cooled
Fuel Delivery 1 Carburetor 1 Carburetor
Ignition System Digital CDI Digital CDI
Starting System Manual / Electric Manual / Electric
Exhaust Through Hub Exhaust Through Hub Exhaust
Lubrication Trochoid Pump Pressure Lubrication Trochoid Pump Pressure Lubrication
Trim Range 5-Stage Manual Tilt 5-Stage Manual Tilt
Tilt Range 72° 72°

Drive

Specification BF15 BF20
Gear Ratio 2.08:1 2.08:1
Gear Shift F-N-R F-N-R

Equipment

Specification BF15 BF20
Alternator with Voltage Regulator 12-Amp Optional 12-Amp Optional
Battery Charging Power 6 Amps 6 Amps
Propeller Standard Standard
Power Tilt NA NA
Power Trim & Tilt Available on selected models Available on selected models
Gas Assisted Tilt Standard Standard
Oil Pressure Alert Standard Standard
Temperature Alert Standard Standard
Rev-Limiter Standard Standard
Speedometer Pickup Optional Optional

Dimensions

Specification BF15 BF20
Overall Length 650 mm / 25.6 inches 650 mm / 25.6 inches
Overall Width 350 mm / 13.8 inches 350 mm / 13.8 inches
Overall Height (S Type) 1,110 mm / 43.7 inches 1,110 mm / 43.7 inches
Overall Height (L Type) 1,237 mm / 48.7 inches 1,237 mm / 48.7 inches

Transom Height

Specification BF15 BF20
S Type 433 mm / 15 inches 433 mm / 15 inches
L Type 563 mm / 20 inches 563 mm / 20 inches

Dry Weight

Specification BF15 BF20
S-Type 46 kg / 101 lbs. 46 kg / 101 lbs.
L-Type 49 kg / 108 lbs. 49 kg / 108 lbs.
